When your material handling zone is tight, and mobile equipment is getting to close to each other, you’re facing a space and workflow issue and require smarter lifting strategies for those confined spaces.
If you are moving heavy parts, equipment, tools, racks or supplies, space constraints impose limits and this is where a jib crane can take over the lifting work without adding more congestion to the floor.
Continue reading to learn how to recognize the problem and compare your options. We’ll help you evaluate when a jib-type crane is the right fit for your operation give you actionable steps you can take to solve your spacing issues.
Sizing Your Lifting Equipment for Confined Work Zones
Larger lifting systems do great work across a full bay but some tasks happen in tight corners or fixed stations where a different approach to lifting makes more sense.
First let’s look at a few scenarios that can raise a flag:
- When forklifts, overhead cranes and gantry systems are under-utilized or sit idle because their reach doesn’t match your workflow.
- Your operators frequently move heavy loads manually or with ad-hoc equipment and thus you’re seeing strains, near-misses or damaged goods.
- You’ve got a station or zone where repetitive lifts or transfers happens but the only path for movement crosses walkways, equipment, or valuable floor space.
- You need lifting and moving capability in a semi-fixed location (feeding a machine, loading/unloading a bay), but you don’t want the footprint or cost of large crane infrastructure.
- Floor space is at a premium or the current structure limits what big systems can do (low ceiling, obstruction, wall/column layout).
If any of those apply you have what we in the crane industry call a “confined lifting workspace“.
The goal here is not to lift the largest possible load, but to lift smarter, more precisely and more often with less disruption.
Why a Jib-Crane Solution Makes Sense in Certain Spaces
The following are some key reasons a jib crane shows up as a strong candidate in confined spaces:
Space-efficient footprint
Unlike bridge or gantry cranes which need full bay travel or large runways, a jib crane can be column-mounted, wall-mounted or freestanding, and serve a defined arc of operation. They’re designed for tighter zones.
Localized control and precision
Because the boom rotates and the hoist travels on the arm, you can place loads with better precision and faster cycle times compared to dragging loads across floor lanes.
Reduced operator fatigue and improved safety
When lifting is repetitive, awkward or manual, you’re exposing team members to risk and slowing throughput. A jib crane handles the load and motion and lets operators work more efficiently and safely.
Cost-effective relative to “big crane” systems
In many cases the budget, civil-work and schedule for a full overhead crane or large gantry are overkill for the actual task. Jib systems give you material-handling power without requiring massive infrastructure.
Quick to implement & flexible
Since mounting options vary (wall, column, floor), you can often retrofit or install faster with less disruption to existing layout. And you can tailor the jib arc, boom length, load capacity to the exact zone.
Matching the Right Job to the Right Jib Crane Type
Because not all jib cranes are the same or perform the same function, to make a more informed decision consider these factors:
Key decision factors:
| Factor | Why it matters | Typical threshold questions |
| Load weight & size | Under-sizing means risk of failure and oversizing wastes budget. | What is the maximum expected load plus attachments? Is there future growth? |
| Reach, boom length and radius | The task determines how far and around you need to swing the load. | What is the furthest point you need to reach? Do you need 180° or 360° rotation? |
| Mounting support structure | The way the crane is mounted impacts the cost, footprint and structural needs. | Will the crane mount to an existing column or wall? Does the floor need a new pad or foundation? |
| Duty frequency and cycles | High-use zones need crane components rated for heavy duty while low-use can be simpler. | How many lifts per day. Is the task constant or occasional? |
| Space constraints (height, obstructions, traffic) | Ceiling, adjacent equipment and walkways all affect feasibility. | Is there overhead interference? Will the boom swing interfere with other operations? |
| Future flexibility | Your workflow may evolve so building and planning for adaptability helps. | Could this zone change function in 2-3 years? Could reach or capacity needs change? |
Types of Jib Cranes and Typical Use Cases
Here’s a simplified breakdown:

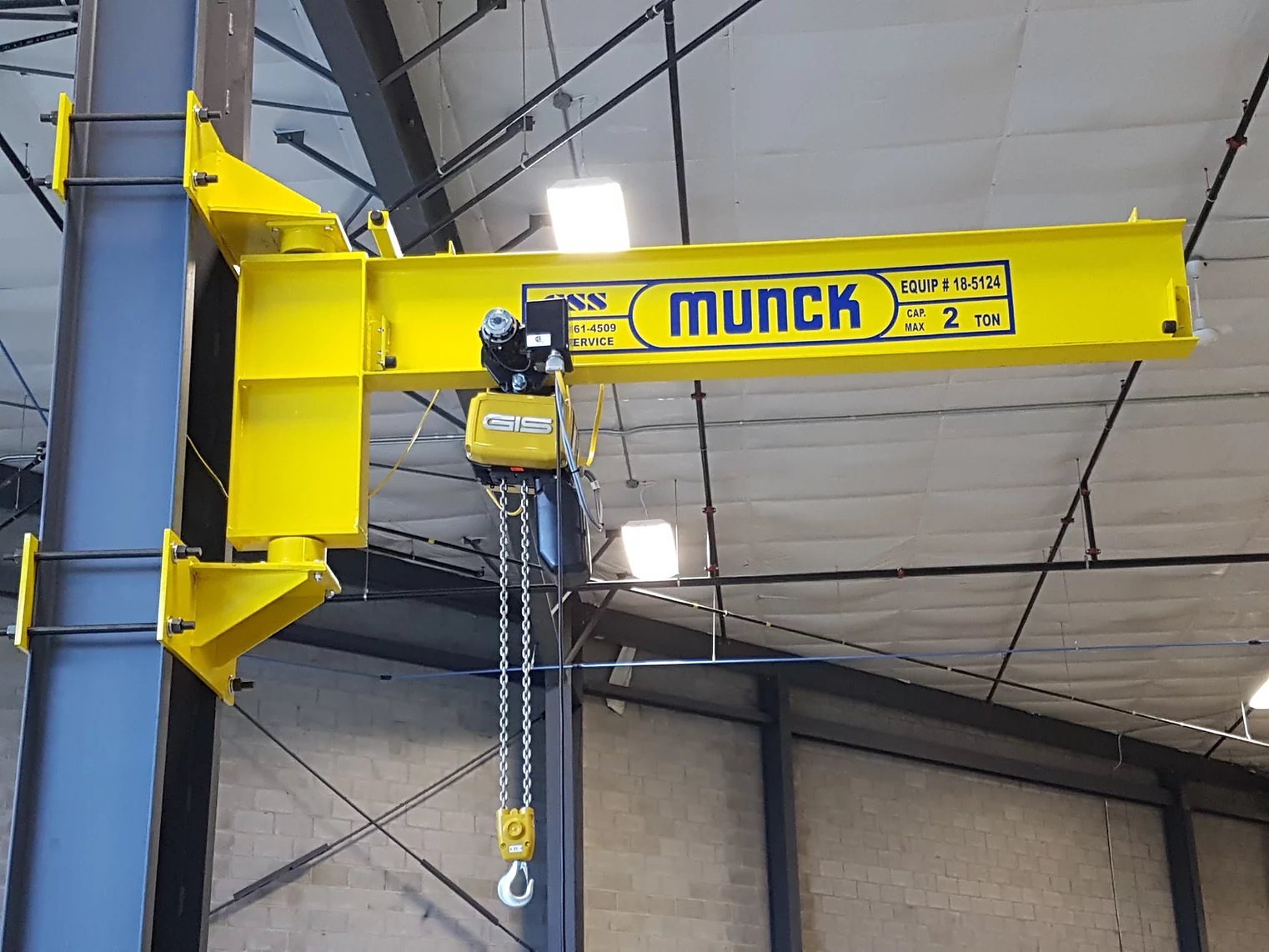

Wall-mounted jib crane
Mounted to a wall or column, 180° or slightly more reach, space-saving. Ideal for loading bays, repeat lift zones along walls. It’s a strong choice when you need reliable lifting without adding another column or occupying valuable floor space.
Freestanding (pillar/column) jib crane
Base mounted to floor, provides 360° rotation, often for single station or a central cell. Good when wall mounting isn’t practical. This setup gives you full rotational freedom and a dedicated lifting area that won’t interfere with surrounding equipment.
Articulating (knuckle-boom) jib crane
Two pivoting arms let you go around obstacles or reach into awkward shapes. Best when the zone is constrained by equipment or workflow obstacles. It’s especially effective in areas where straight-arm cranes can’t hit all the points you need due to machinery, corners or irregular layouts.
How to Integrate a Jib Crane into Your Operations
Here’s a step-by-step mini check-list your plant team can refer to:
| Step | Description |
| Map the lifting task | Identify the source location, destination, path, frequency, weights, attachments, and operator needs. |
| Measure your zone | Review clearances, floor space, wall/column structural strength, ceiling height, and traffic lanes. |
| Define performance goals | Set targets for cycle time, number of lifts per shift, operator ergonomics, and safety metrics. |
| Select mounting and type | Choose between wall-mounted, freestanding, or articulating styles based on capacity and reach needs. |
| Plan civil/structural work | Assess whether anchor bolts, new foundation work, or reinforcement will be required. |
| Install & train | Complete installation, train operators, and establish safe operating procedures and maintenance schedules. |
| Monitor & refine | Track lift times, workflow interference, maintenance, and operator feedback. Adjust if needed. |
Typical Gains You Might See When Replacing an Inefficient Lifting Method
Once a jib crane is properly integrated into your operation, the performance differences are often measurable and immediate. Here’s a table that summarizes the typical gains a facility can see when replacing an inefficient lift/move method with a purpose-built jib crane.
Readers note: this table is only illustrative and actual results depend on your site variables.
| Metric | Before (manual/forklift/over-use) | After (jib crane installed) |
| Average lift/transfer cycle time | 2-3 minutes (including travel + reposition) | ~30-90 seconds (depending on distance) |
| Operator involvement | High manual effort, repositioning, spotting | Minimal manual force, operator focuses on task |
| Floor space used in lift zone | Forklift travel lanes, reposition space, clearance | Smaller working footprint, fixed arc of movement |
| Safety incidents / near-misses | Higher due to manual loads, forks, obstructed zones | Lower, thanks to controlled, dedicated lift system |
| Equipment downtime for lift-move tasks | Longer (equipment shifts, repositioning) | Shorter; lift system dedicated and fixed |
| Capital & civil cost for solution | High (overhead runway, gantry rail, new floor) | Moderate (anchor bolts, mounting, crane delivery) |
When a Jib Crane Isn’t the Right Choice
To be clear: A jib crane is a solution for a certain scale and scope. It won’t always be the answer. Consider alternatives when:
- You need to lift extremely large loads (tons upon tons), across an entire large bay or across multiple zones – then a bridge, gantry or overhead crane may be more appropriate.
- You need multiple axes of travel over large distances (e.g., cross-bay and long span).
- The mounting or civil work requirements (floor strength, wall support) are prohibitive for your space.
- You foresee significant changes in reach or capacity needs that would dramatically exceed the jib crane’s lifecycle or capability.
In those cases you may specify a jib crane for one zone but treat it as a tactical fix-not the full facility strategy.
Next steps for plant managers
While your crane provider will collaborate with you on all of these planning stages, the checklist below offers a useful overview to help frame the discussion.
| Step | Action |
| 1. Map Your Lift-Move Zones | Identify key areas and define the tasks: weights, frequency, distances, and operator paths involved. |
| 2. Prioritize High-Impact Zones | Focus on areas where floor space is tight, manual lifting is frequent, or inefficient travel is common. |
| 3. Consult with a Vendor or Engineer | Ask specifically about “jib crane for confined workspace” options and request quotes for installation and cycle-time savings. |
| 4. Build a Simple ROI Model | Estimate time saved, safety risk reduction, and floor space regained to support your capital request or planning process. |
| 5. Plan & Execute | Set a clear project milestone, schedule installation, operator training, and performance tracking after deployment. |
In Summary
You can read our guide on Do I Need a Bridge Crane, Jib Crane, Gantry Crane, or Workstation Crane? for more information on what kind of crane or lifting system best fits your workflow. Choices often include bridge cranes, jib cranes, gantry cranes, or workstation cranes.
If your operation is struggling with lifting and moving loads in spaces that don’t allow a big crane approach, get in touch with Munck Cranes to discuss a jib crane configuration that supports safer and more efficient lifting in confined work zones.
