Here we explain how industrial cranes safely lift heavy weights with ease and focus on the underlying principles of crane operation.
Cranes are indispensable tools in construction. They enable the lifting and moving of heavy materials or machinery that would otherwise be unmanageable.
Their ability to handle such heavy weights safely and efficiently is their key selling point and it all comes down to the advanced engineering principles, strategic designs, and the application of high-strength materials.
Crane Mechanics
The fundamental mechanics of cranes involves converting small amounts of force into large amounts of lifting power. Let’s explore how these machines actually manage to perform such demanding tasks.
The Principle of Leverage
Leverage is a basic yet powerful physical principle applied in crane design to amplify force.
How Leverage Works
This leveraging works similar to a seesaw. A crane uses a long arm (boom) and a pivot (fulcrum), with a counterweight on one end to balance the load on the other.
For example, a crane with a 10,000-pound counterweight at a distance of 10 feet from the pivot, creates a moment of 100,000 pound-feet, allowing it to lift a weight of 1,000 pounds at the end of a 100-foot boom. This means the crane uses the counterweight like a seesaw – placing it far enough on one end to lift heavy objects on the other end with little effort.
The Impact of Leveraging in Cranes
By adjusting the length of the boom and the weight of the counterweight, cranes can lift heavier objects with less input force. This demonstrates an efficient use of leverage.
Geometry and Stability
The stability and capacity of a crane significantly depend on its geometric design.
Triangular Configurations
Triangles are frequently used in crane construction – particularly in Jib Cranes and Gantry Cranes – because of their ability to distribute force evenly. The triangular shapes help maintain structural integrity under heavy loads and prevent deformation.
The triangle configuration ensures that the crane can operate safely and effectively in environments requiring precise maneuvering and heavy lifting.
Box Configurations

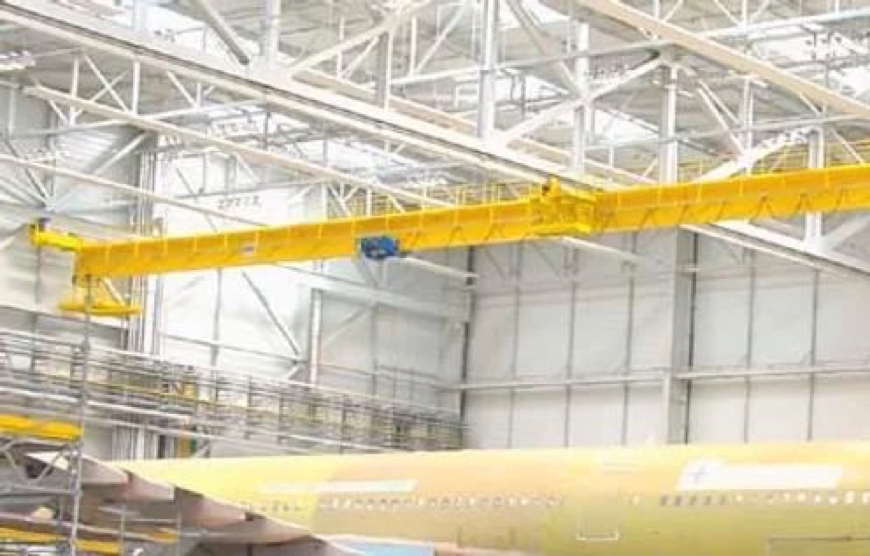

Overhead Cranes are often built in the configuration, where the main bridge beams are box-shaped. This design offers a high resistance to bending and twisting and is important for cranes that need to lift heavy loads across wide spans.
The box configuration provides the needed strength for the crane to perform reliably in heavy-duty industrial applications.
Monorail Systems
Used in Bridge Crane kits, monorail systems involve a single rail configuration – sometimes part of the kit – that allows for a straightforward linear motion. This system is particularly effective in facilities where space efficiency and direct paths are strongly required for material handling.
Underhook Accessories
Underhook and special lifting equipment configurations are manufactured to enhance the versatility and functionality of cranes. This setup includes custom-engineered below-the-hook accessories like lifting beams, spreader bars, and grapples – which are needed for handling a variety of loads safely and efficiently.
Each configuration is specifically suited to its crane type, leveraging geometry and design to maximize performance, safety, and load capacity. These configurations help ensure that each crane type can handle the particular demands of the tasks for which it is designed.
Crane Materials and Design Innovations
Cranes must be built from materials that can withstand high stress and heavy loads. Here’s how material science plays a critical role in crane design.
High-Grade Steel and Alloys
The strength and durability of a crane are due to the types of materials used to build them. High-grade steel and specialized alloys offer exceptional resistance to stress and wear. Steel grades like ASTM A514 T1 (known for its yield strength of up to 100 ksi) are common choices. These materials are not only strong but also have a high resistance to bending and fracturing under heavy loads.
Particular alloys (like those containing chromium, nickel, and molybdenum) add another layer of durability and toughness to the steel. They help improve the it’s weldability and toughness and maintains the integrity of the crane’s structure under dynamic loads. These alloys are heat treated and quenched to so they can withstand the harsh conditions and variable temperatures they usually operate in.
The combination of these advanced materials make cranes indispensable in industries like construction, manufacturing, and shipping. This reliance on high-grade materials ensures the cranes can operate safely and efficiently, and maintain performance over long periods and under strenuous conditions.
Using Stronger Steel
Cranes typically utilize steel with a much higher tensile strength than what’s used in general construction. This includes grades capable of handling up to 690 MPa (megapascals), which allows for the lifting of heavier loads without risk of material failure.
These steels are quenched and tempered to increase their load-bearing capacity and maintain their resilience under dynamic loading conditions.
Advanced Alloys
Components such as pins and shafts are made from specialized chromium-nickel-molybdenum steel, built for high stress resistance and ensuring longevity and reliability. These types of steel are are essential for withstanding repetitive stresses. Steel alloys also improve resistance to corrosion and high temperatures which makes these components ideal for harsh and outdoor working conditions.
Engineering for Maximum Efficiency
The engineering of a crane is focused on maximizing its load capacity while ensuring safety and stability.
Optimized Boom Design
Just like a fishing rod must balance flexibility and strength, crane booms are designed to be lightweight yet strong enough to carry loads significantly heavier than their own weight. This type of design allows for greater reach and operational flexibility while minimizing structural stress during complex lifting operations.
Advanced materials and aerodynamic shaping also reduce wind resistance and enhance stability at high elevations.
Hydraulic Systems and Slewing Rings
These systems provide the necessary power to operate the crane, with hydraulics providing precise movements and slewing rings that enable the crane to rotate with a load. These elements are positioned to maintain the crane’s operational capacity.
The hydraulic fluid is specially formulated to maintain viscosity under varying temperatures and pressures. The slewing rings are typically made from hardened steel to resist deformation and wear under heavy loads.
These innovative materials – paired with intelligent design – enable cranes to handle the demanding tasks of various industries like the maritime, aerospace, and manufacturing sectors.
Practical Applications and Safety Measures
Material Handling Equipment Integration
The term Material handling equipment (MHE) encompasses a class of mechanical devices that facilitate efficient movement, storage, control, and protection of materials, goods, and products during manufacturing, distribution, consumption, and disposal.
From pallet jacks and forklifts to automated warehouse solutions, these tools are fundamental in optimizing the workflow and safety protocols in material management.
Counterweight Systems and Load Balancing
Accurate crane balancing is meticulously calibrated to offset the load lifted by the crane and thus ensures stability and prevents tipping. These systems are adjustable and allow operators to modify the load balance based on the weight and distribution of the cargo. The placement and size of the counterweights are engineered to maximize load capacity and minimize strain on the crane structure during lifting.
The Function of the Counterweights
Counterweights help balance the load, preventing the crane from tipping over. This balancing act is a precise calculation that factors in the weight and position of the load relative to the crane’s pivot point.
Adjusting for Load Weight
As the weight of the load increases, the crane’s counterweight system adjusts to maintain stability. This forward and backward tilting is carefully controlled to prevent accidents and ensure the load is handled safely.
How to Ensure Operational Stability
Cranes must be extremely stable. To ensure this they are precisely engineered to pass rigorous testing to make sure all components function harmoniously under various load conditions.
Regular maintenance checks and adherence to safety protocols are also essential and crane operators are trained to handle loads according to specific guidelines to prevent operational hazards.
This comprehensive approach helps sustain the crane’s balance and stability and ensures safe and efficient lifting tasks.
Risk Management
Even with strong materials and counterweights, the risk of tipping or structural failure still remains if a load is too heavy or improperly positioned.
To counteract this, engineers meticulously calculate load limits and ensure all safety protocols are followed.
